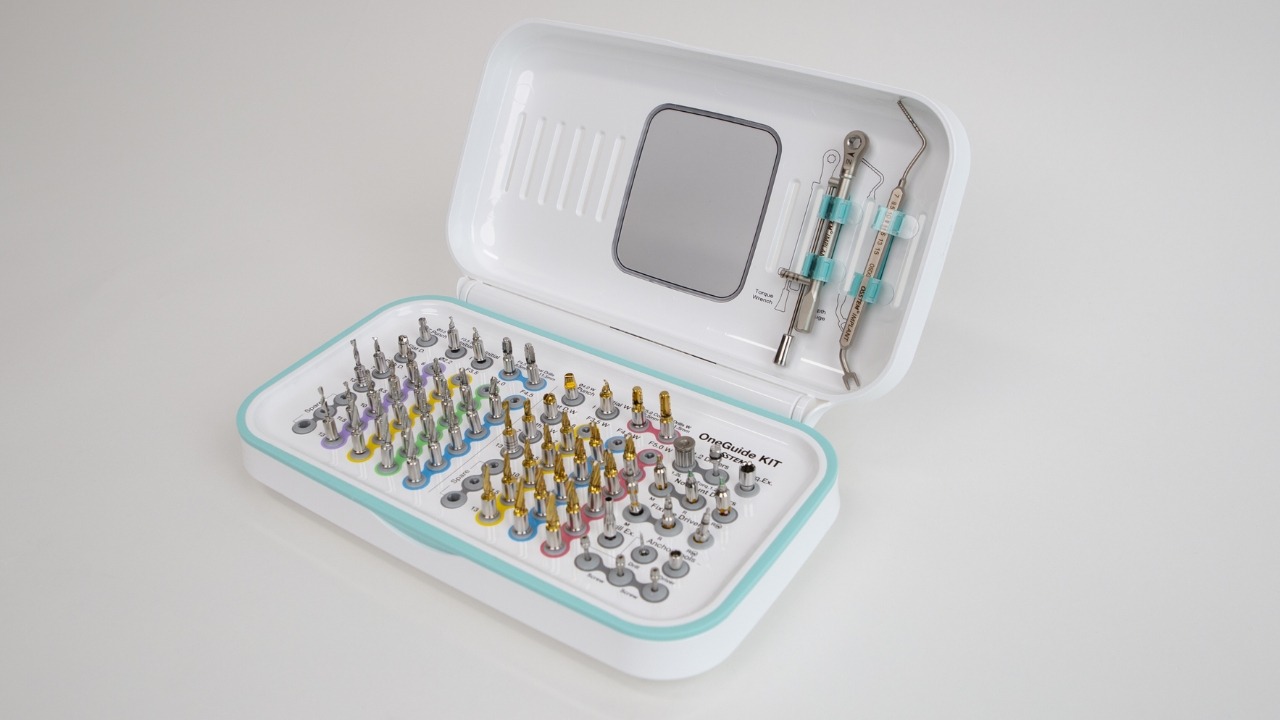

OneGuide KIT

Digital implant guided surgery
ensures highly accurate and convenient surgical procedures

홈으로 가기
Key Features
  • Ensures quick and convenient surgery with a super simple “122” procedure
  • Side open approach allows easy access to #7 tooth
  • Ensures precise surgery with stable drilling
  • Ensures faster treatment without bone heating concerns
Features
Ensures quick and convenient surgery with a super simple “122” procedure
  • Depending on the bone quality, implants can be placed by drilling at least 2 times and up to 4 times

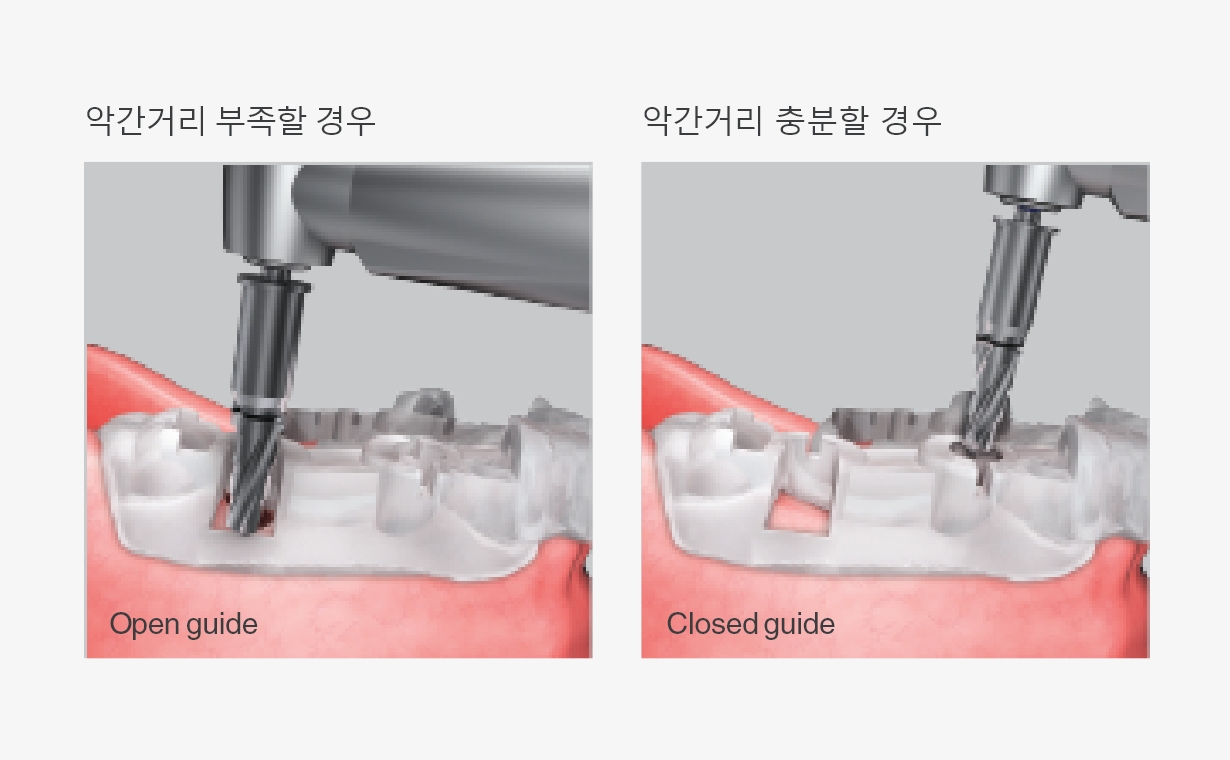

Side open approach allows easy access to #7 tooth
  • Depending on the patient's oral condition, the drill can enter through the side window to completely solve any limitations of the intermaxillary distance
  • Required intermaxillary distance: OneGuide – 36mm, Conventional guide – 51mm
  • Can select open / closed type as required

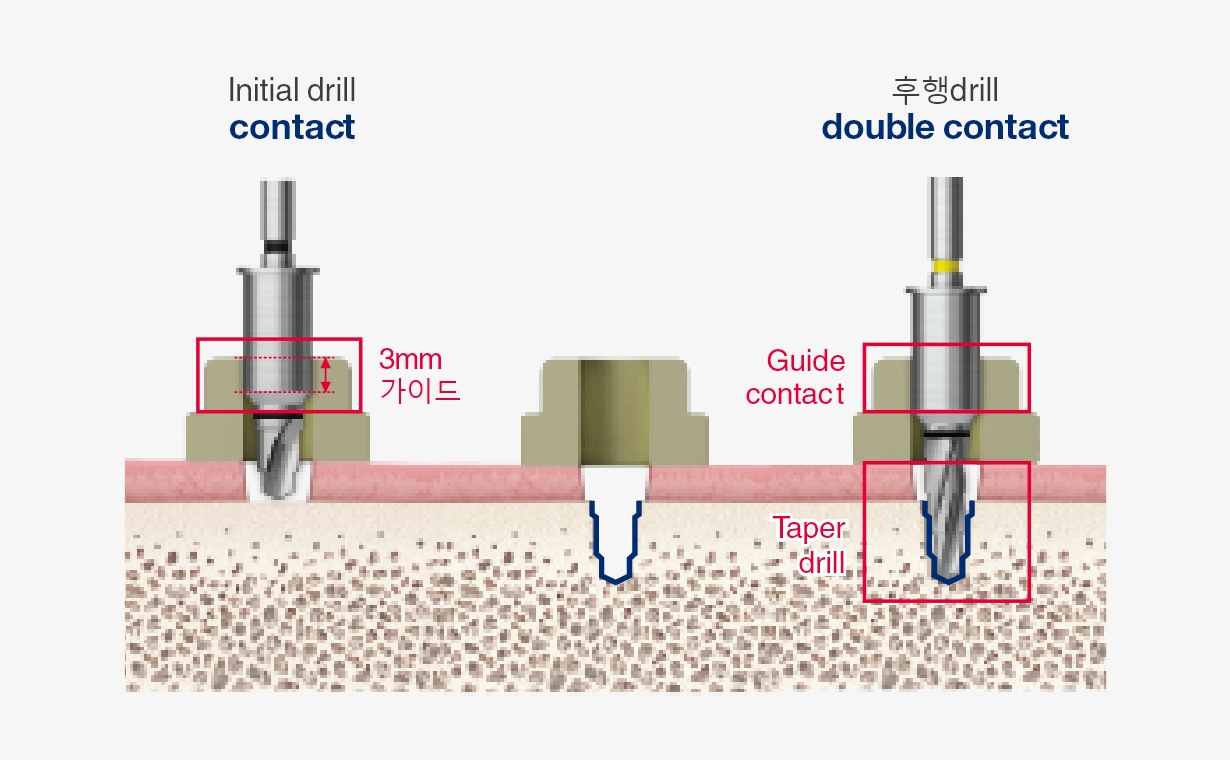

Ensures precise surgery with stable drilling
  • Initial drilling: Drill always remains in contact with the guide by 3mm to ensure precise drilling
  • Final drilling: Due to the taper drill effect, the drill is always in contact with the guide to ensure precise drilling

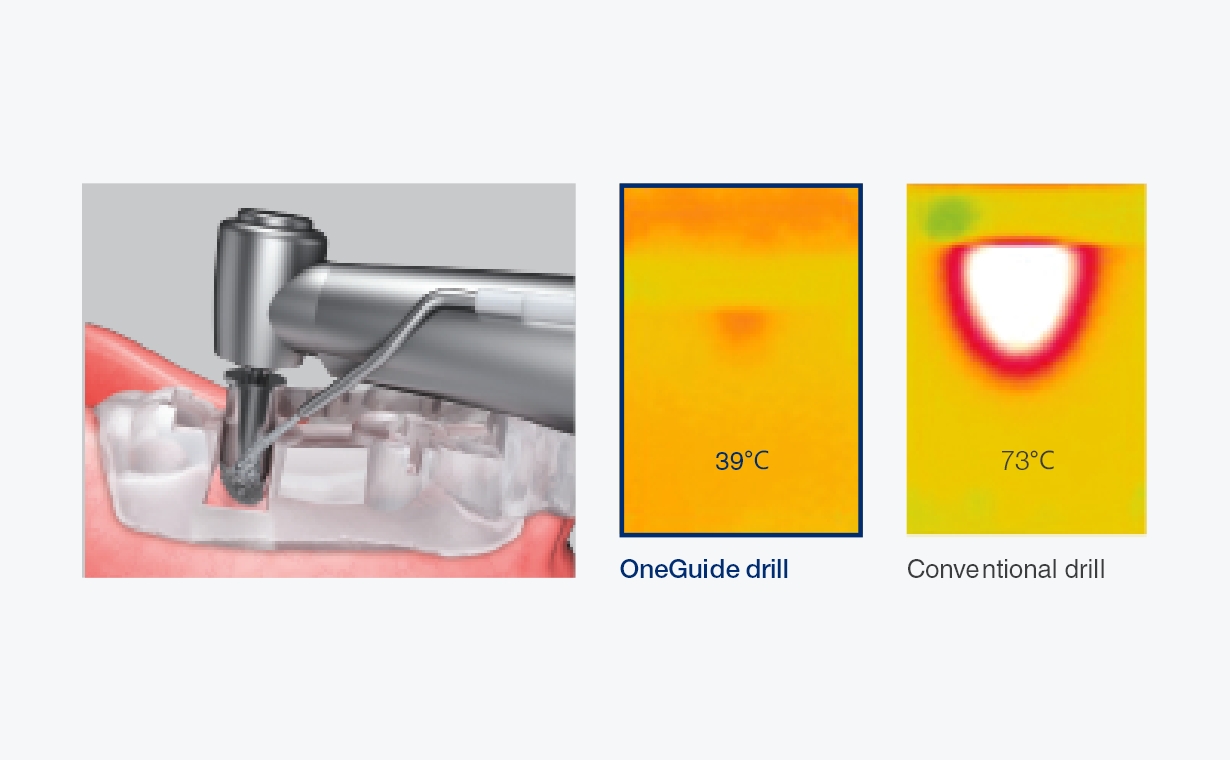

Ensures faster treatment without bone heating concerns
  • High-speed drilling is possible without generating heat thanks to the excellent cutting power of the drill and the easy irrigation of the OneGuide (recommended rpm: 800~1200rpm)

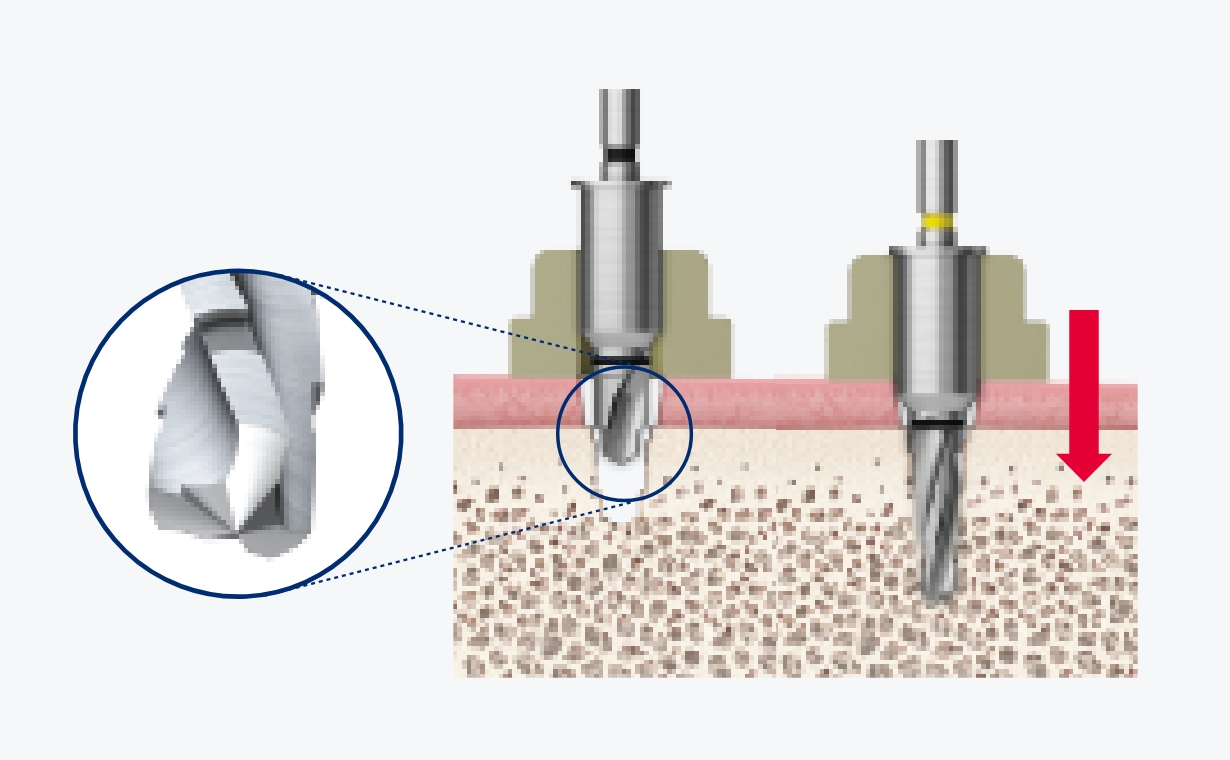

  • Must proceed with drilling in the pumping method to prevent bone heating (especially when using the Close Type)
  • Excellent cutting power of the drill
  • Easy irrigation of the OneGuide

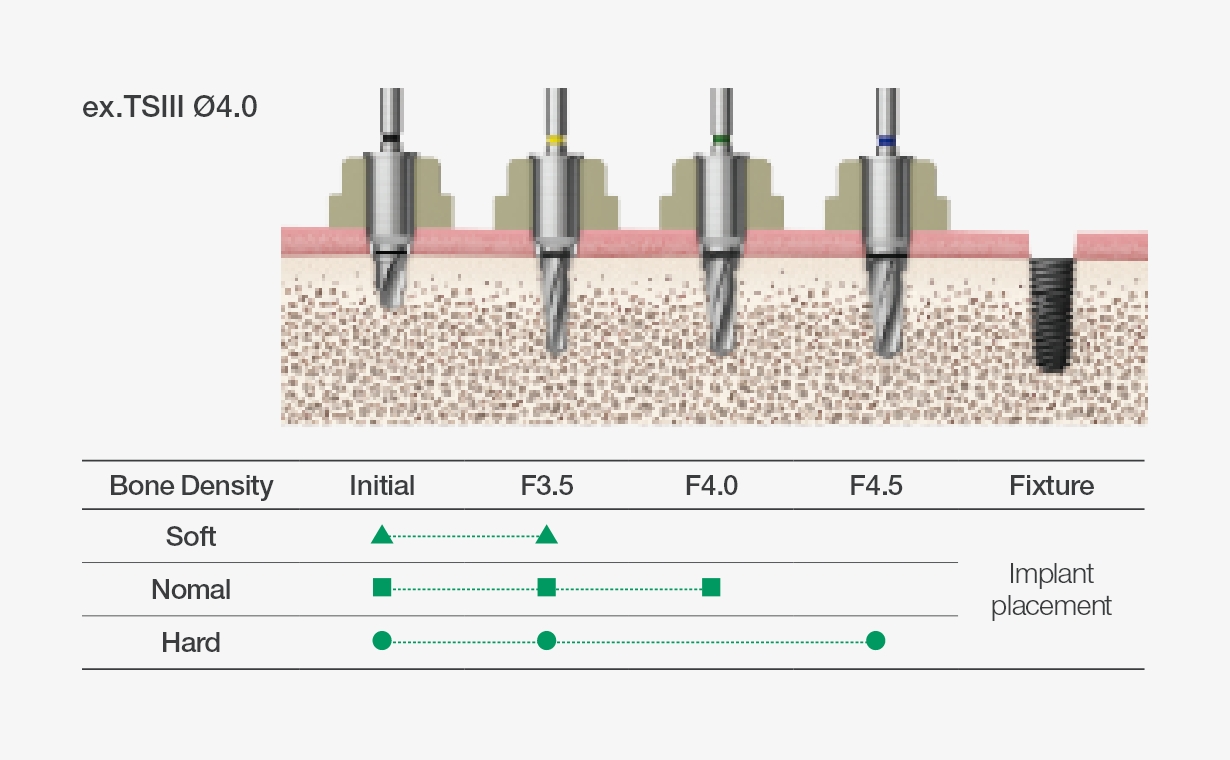

Drilling Sequence
Fixtu r e Di am et e r Bon e D e nsi t y Init i a l Ø 2 . 2 F3. 5 F4. 0 F4. 5 F4.5 Cortical F5.0 Cortical F5. 0 F3 . 5 S o f t F3.5 soft N o ma l H a r d F4 . 0 S o f t N o ma l H a r d F4 . 5 S o f t N o ma l H a r d F5 . 0 S o f t N o ma l H a r d

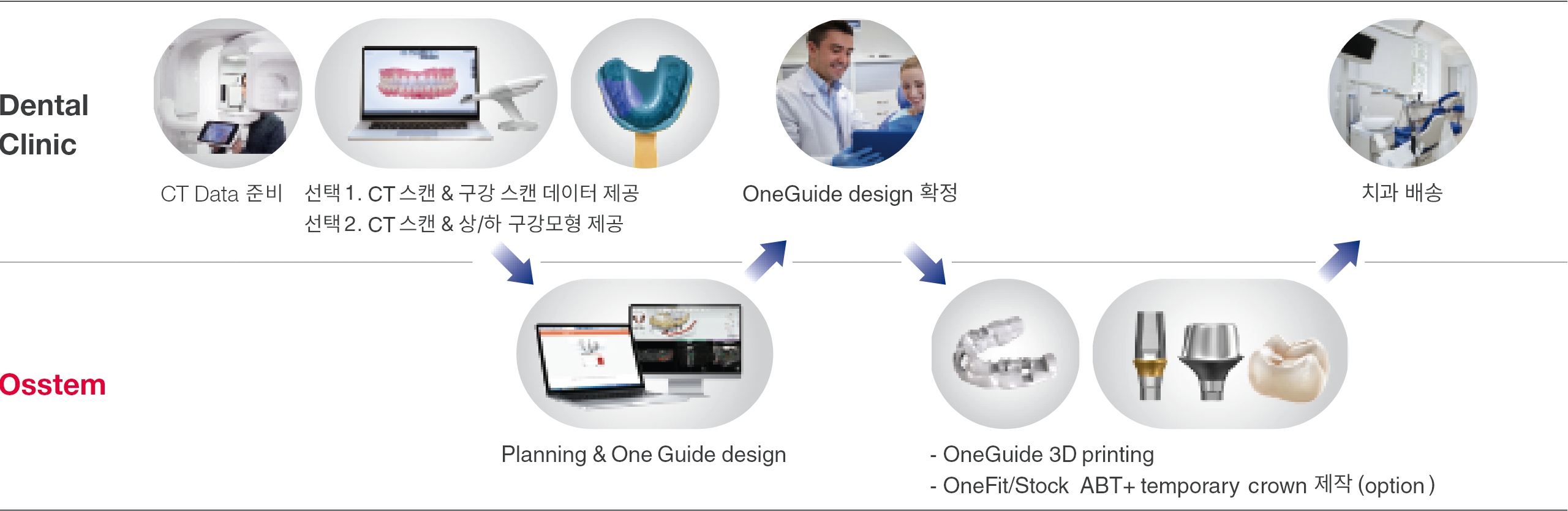

Workflow
OneGuide order website Link
