SS System

Non-submerged type implant
with an internal octa 8º taper connection structure

홈으로 가기
Key Features
  • Can be used for 1-stage surgery
  • Excellent structural stability under external loads
  • Corkscrew & cutting edge
  • Body shape can be selected according to bone quality and the patient's diagnosis

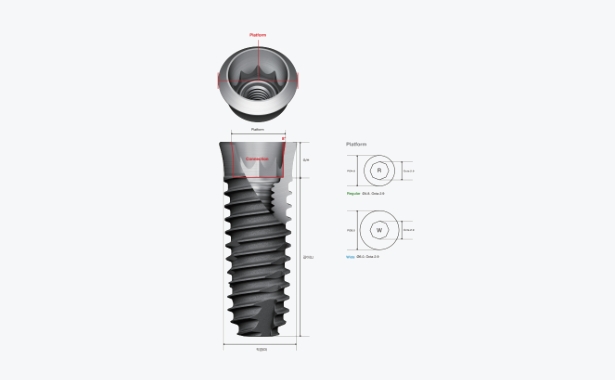

Features
Internal octa, non-submerged type
8º morse taper
Connection - Regular / Wide

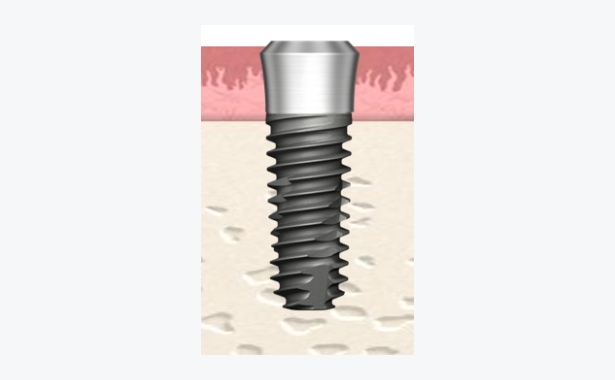

Can be used for 1-stage surgery
  • Does not require secondary surgery thanks to a design that penetrates the gingiva
  • Effective in single case patients (defect in the posterior region)

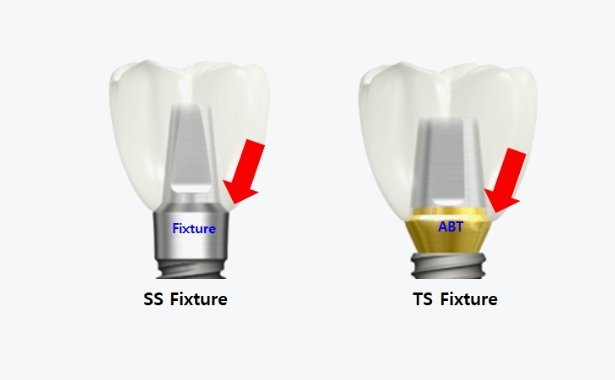

Excellent structural stability under external loads
  • Excellent distribution of masticating force as the crown makes direct contact with the implant

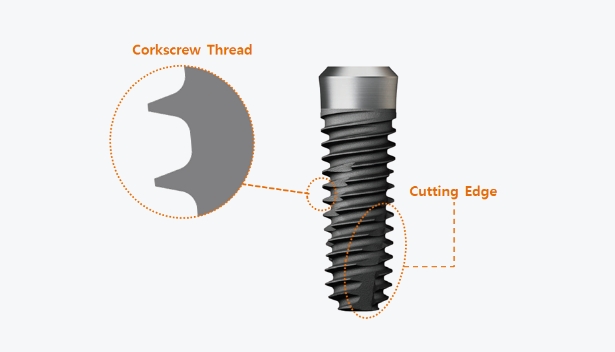

Corkscrew thread & cutting edge
  • Easy to modify the placement path thanks to its powerful self-threading design
  • Increases primary stability in soft bone and generates consistent placement torque across different drill diameters
Body shape can be selected according to bone quality and the patient's diagnosis
식립깊이 조절이 용이한 Straight Body 골질 및 Drill 직경에 대한 민감도가 적음 초기고정력 획득에 유리한 1.5° Taper Body Immediate & Early loading에 적합 III II (1.5°Taper body) (Straight body) SS
Length specification
Length 6mm 7mm 8.5mm 10mm 11.5mm 13mm Image Name Short
Diameter specification
Platform Regular (Ø4.8) Wide (Ø6.0) Design Diameter Ø3.5 Ø4.0 Ø4.5 Ø5.0 Ø5.0 Ø6.0 Ø7.0
Surface specification
SACABA
