TS System

Submerged type implant
with an internal hex 11º taper connection structure

홈으로 가기
Key Features
  • Small thread design for the abutment
  • Double thread enables quicker placement
  • Corkscrew thread & cutting edge
  • Body shape can be selected according to bone quality and the patient's diagnosis
Features
Internal hex submerged type
11º morse taper
Connection - Mini / Regular

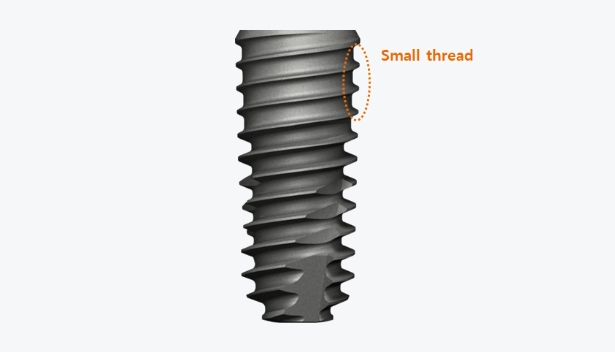

Small thread design for the abutment
  • Improves primary stability in soft bone

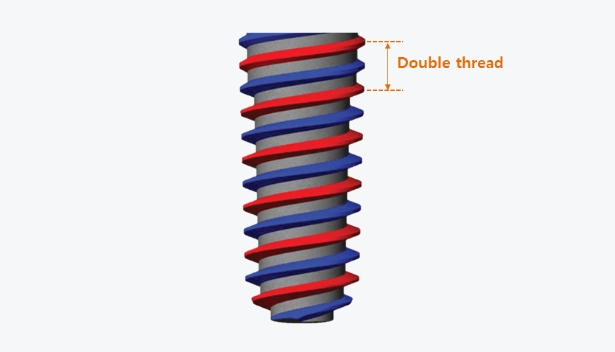

Double thread design enables quicker placement
  • A single rotation can tighten the screw to twice the depth of regular threads, making placement much faster
  • Fast and stable placement helps place the screw while minimizing damage to the surrounding bone

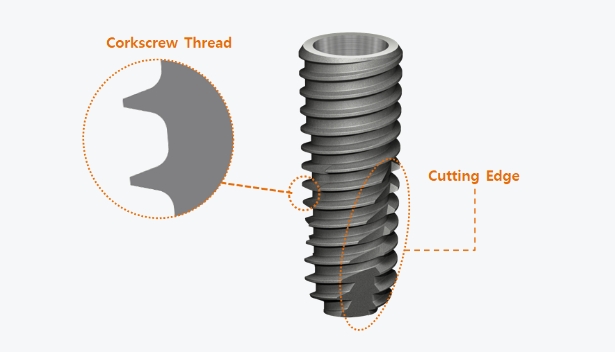

Corkscrew thread & cutting edge
  • Easy to modify the placement path thanks to its powerful self-threading design
  • Increases primary stability in soft bone and generates consistent placement torque across different drill diameters
Body shape can be selected according to bone quality and the patient's diagnosis
II (Straight body) Ⅲ (1.5º Taper body) Ⅳ (6º Taper body) TS Straight Body for easy adjustment of placement depth Less sensitivity to bone quality and Drill diameter 1.5º Taper body that is advantageous for obtaining primary stability Ideal for Immediate & Early loading Implant for maxillary sinus and Soft bone only Even if the bone quality is weak, obtain strong initial stability
Length specification
Length 4mm 5mm 6mm 7mm 8.5mm 10mm 11.5mm 13mm Image Name Extra Short Short
Diameter specification
Platform Mini (Ø2.1) Regular (Ø2.5) Image Diameter Ø3.0 Ø3.5 Ø4.0 Ø4.5 Ø5.0 Ø6.0 Ø7.0
Surface specification
SABASOI
