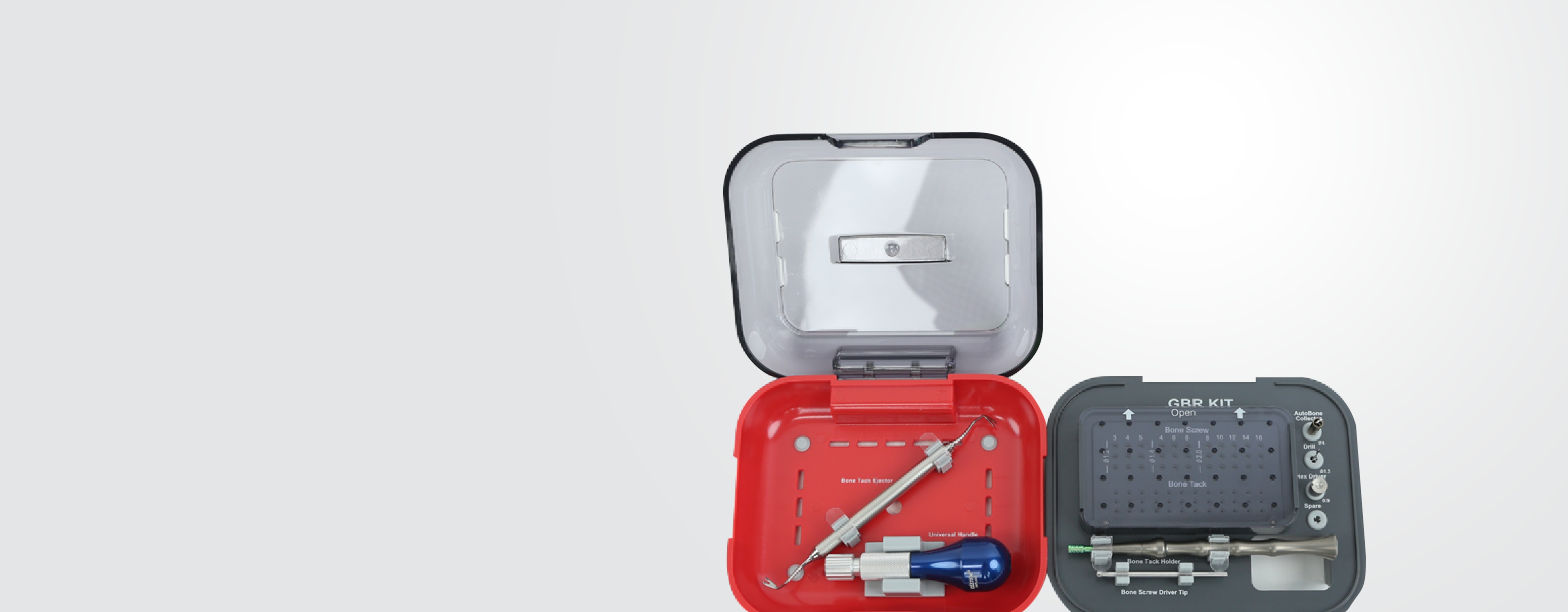

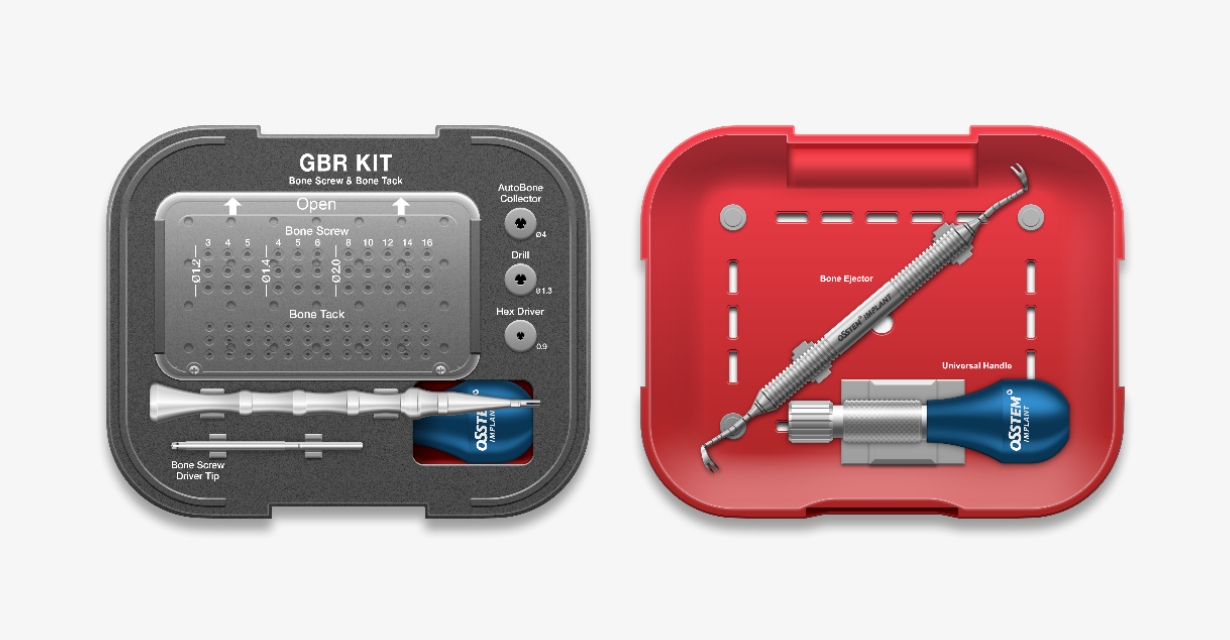

GBR KIT

Features all the tools required for procedures
involving bone screws and bone tacks in one!

홈으로 가기
Key Features
  • Features the equipment necessary for the bone screw and bone tack procedures in 1 kit, making it much more portable and convenient to use
  • Improves osteogenesis performance by reducing the mobility of the shielding membrane, and prevents the loss of the bone graft material transplanted to the treatment site

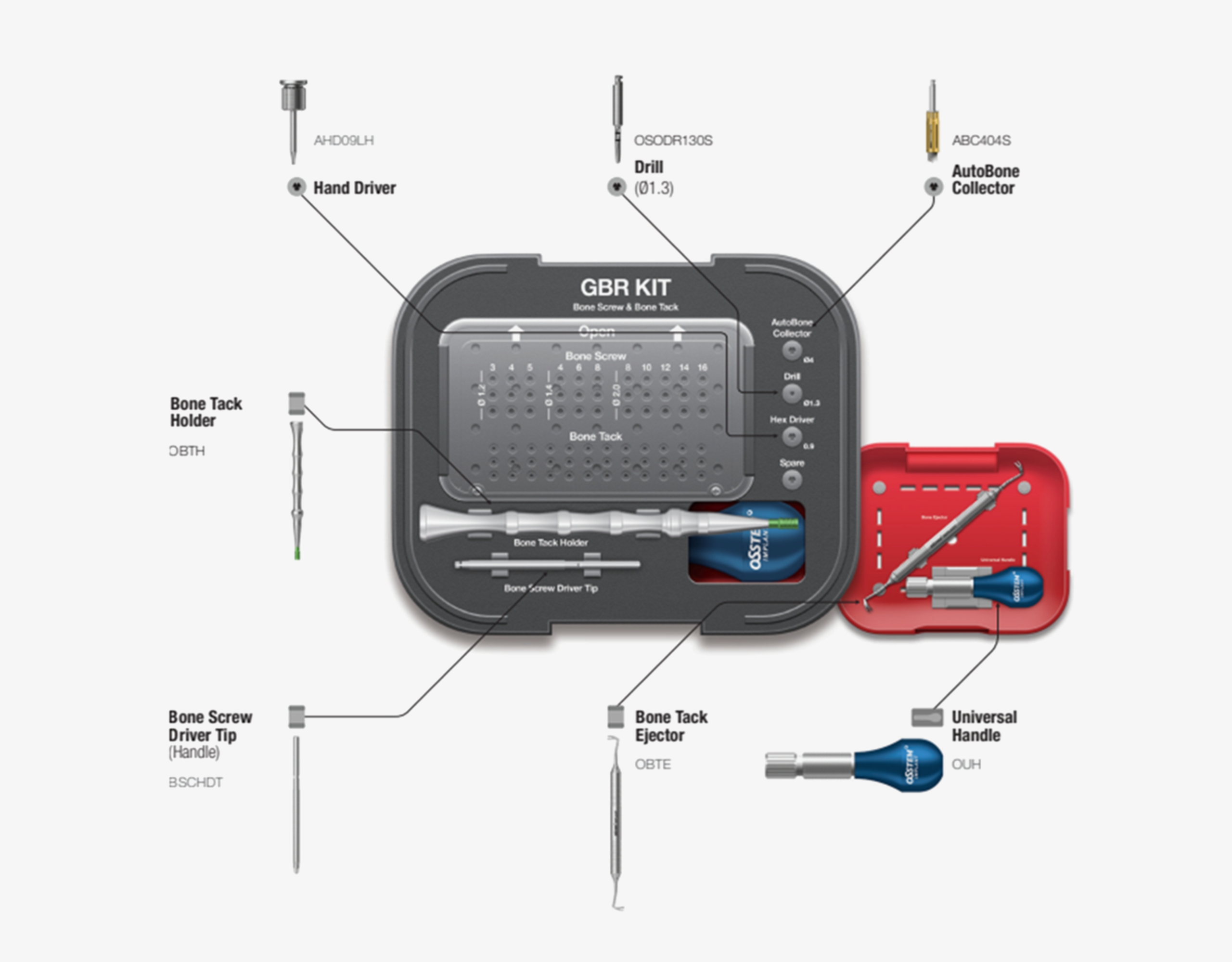

Features
  • Features all the tools when required for procedures involving bone screws and bone tacks in one KIT

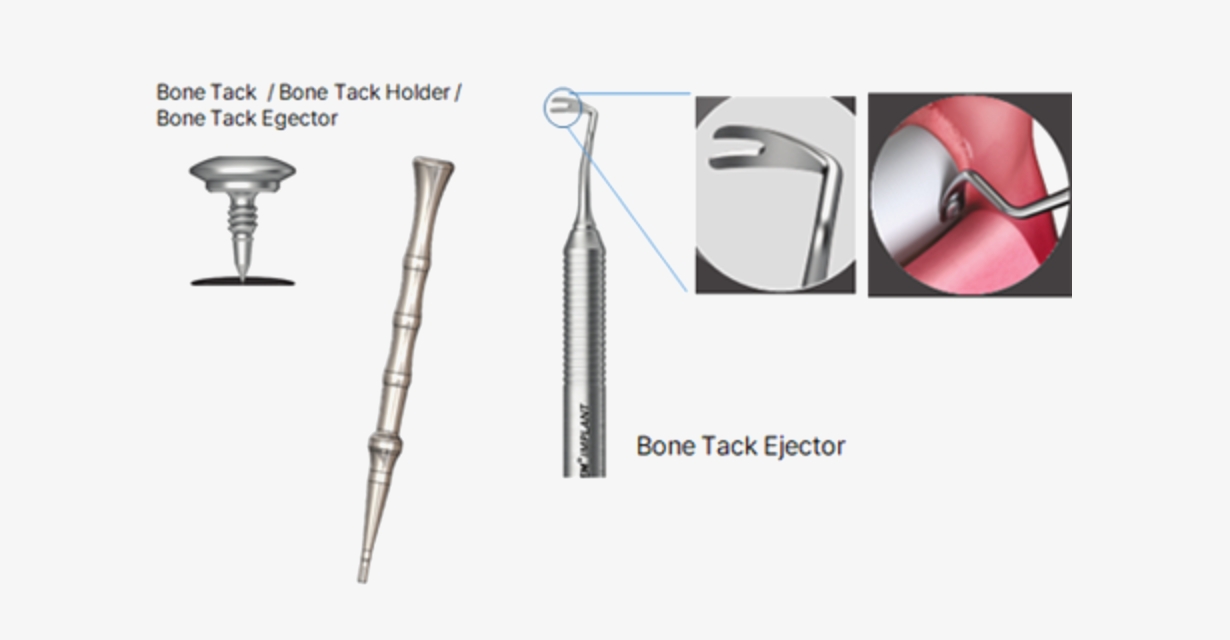

  • Bone Tack
  • Bone Tack Holder : Tool used when fixing a Bone Tack
  • Bone Tack Egector : Tool used when removing a Bone Tack (lever-type design)

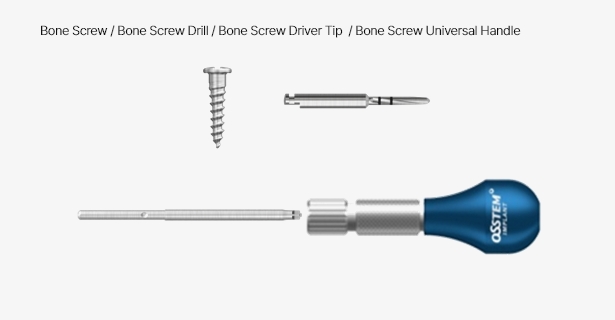

  • Bone Screw
  • Bone Screw Drill : Tool used when installing a Bone Screw
  • Bone Screw Driver Tip : Used in combination with a universal handle
  • Universal Handle : Used in combination with a bone screw driver tip
Specifications
GBR KIT

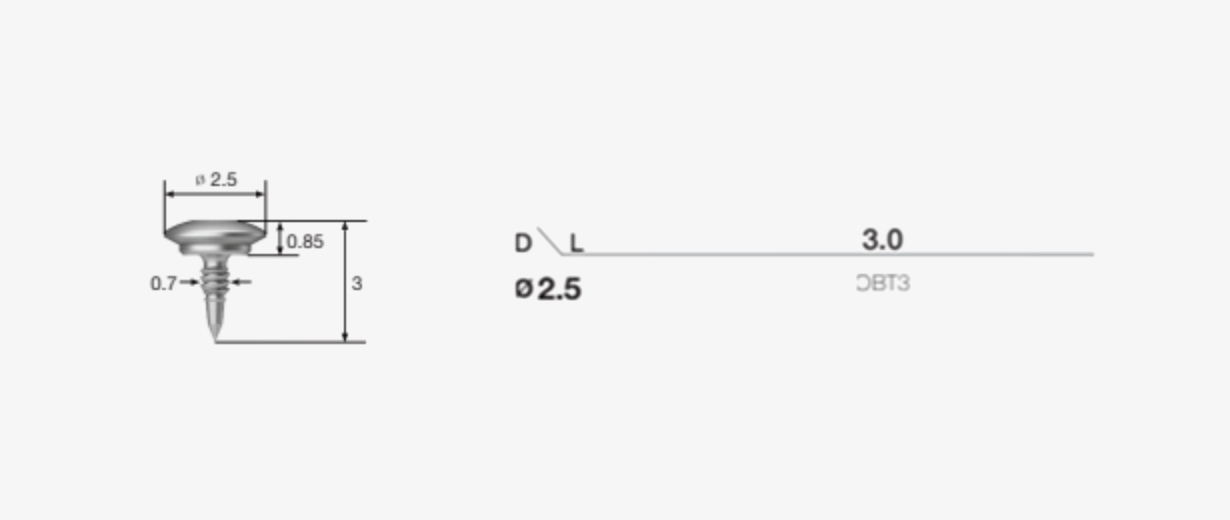

Bone Tack
  • Used when fixing the membrane in place
  • Machine surface
  • Material: Ti-6Al-4V

Disposable item, do not recycle

Bone Tack Tool

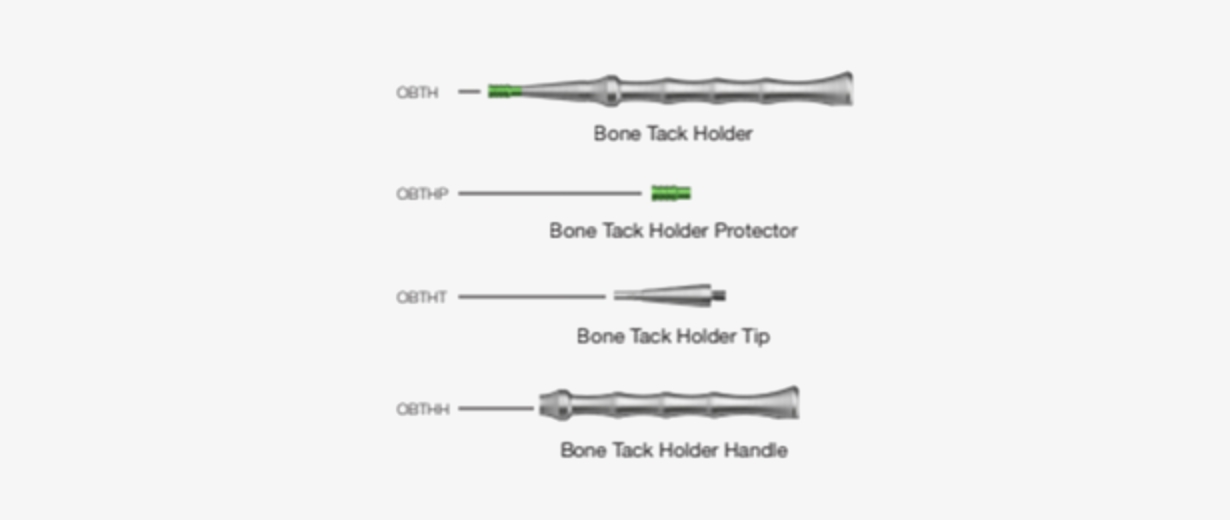

Bone Tack Holder
  • Used when fixing a bone tack in place
  • Designed to offer a stable grip
  • Anti-rotation feature
  • Attach the cap to store

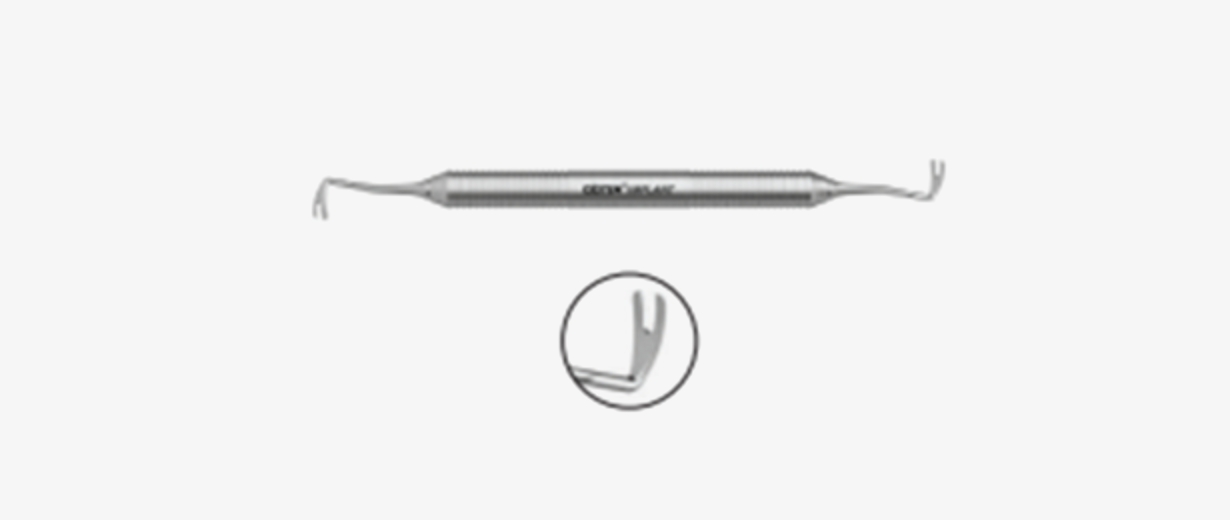

Bone Tack Ejector
  • Used when removing a bone tack
  • Lever-type design for easier removal

When the bone tack is covered with bone and it is difficult to access with the ejector, use a 0.9 hex driver to reverse the bone tack (lift it up), and then use the ejector

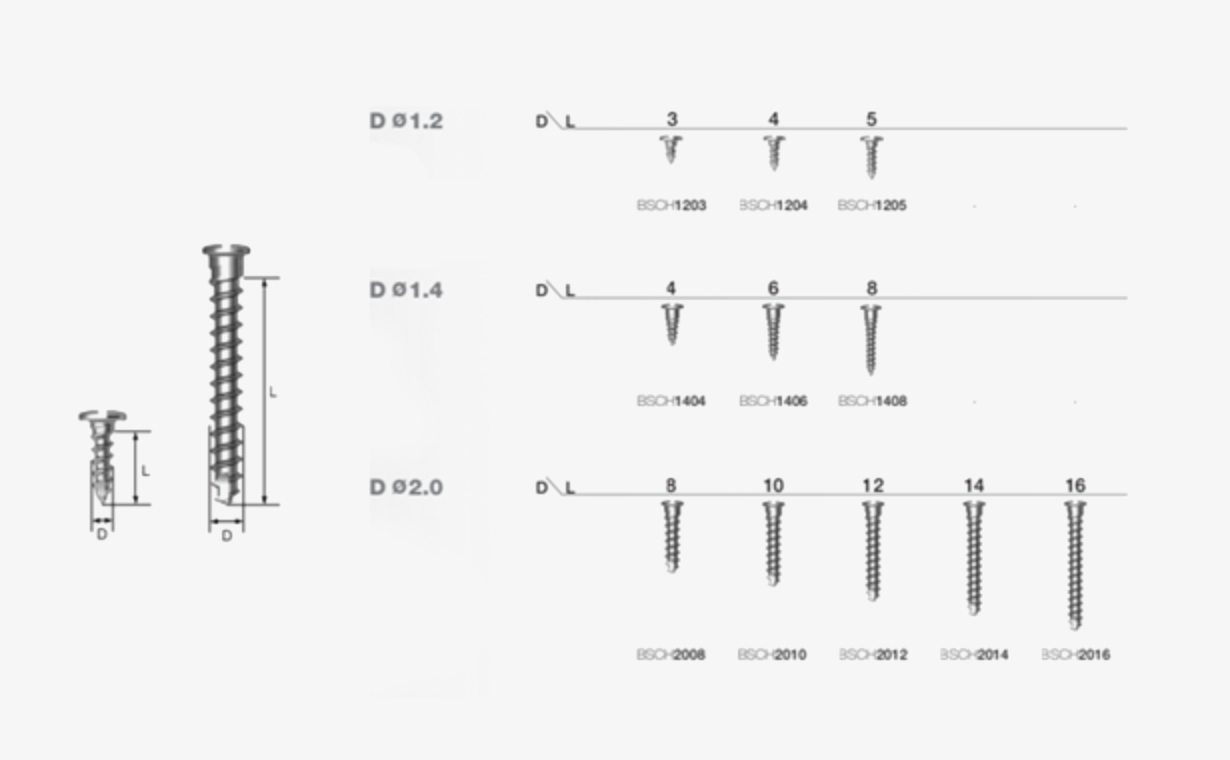

Bone Screw
  • Machine surface
  • Material: Ti-6Al-4V Ø1.2
  • Non-absorbent membrane, used when fixing the OssBuilder in place
  • Sharp tip for self drilling
  • Improved fracture and warpage resistance (Ø1.4)
  • Used when fixing a non-absorbable membrane and bone plate
  • Sharp tip for self drilling
  • Improved fracture and warpage resistance (Ø2.0) • Used when fixing block bone
  • Can be placed after pre-drilling (no self-drilling function)

Disposable item, do not recycle

Bone Screw Tool

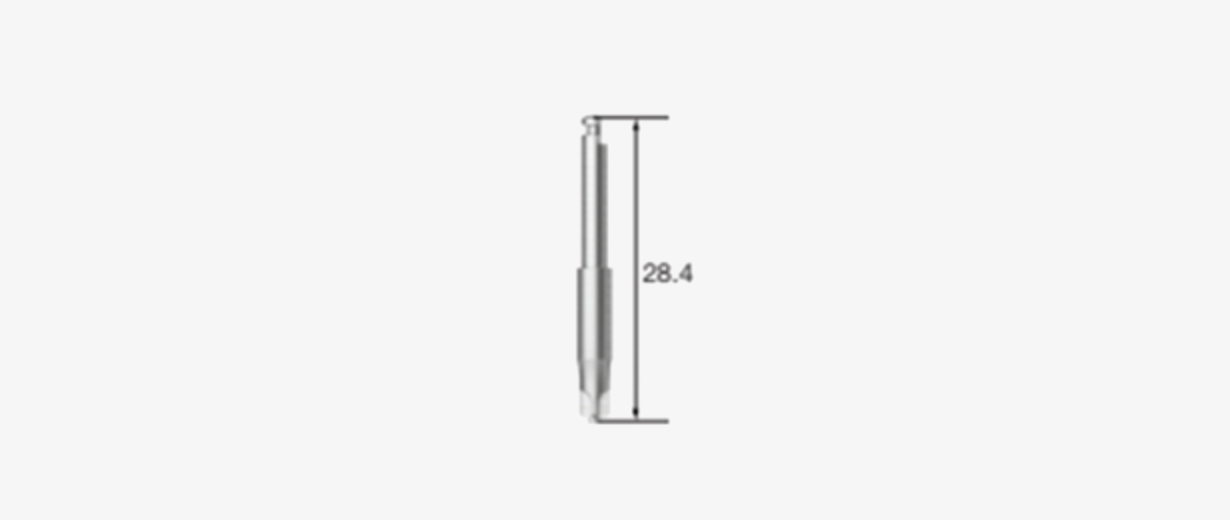

Bone Screw Driver Tip (Handle)
  • Used in combination with a universal handle
  • Use after fully tightening to a bone screw vertically

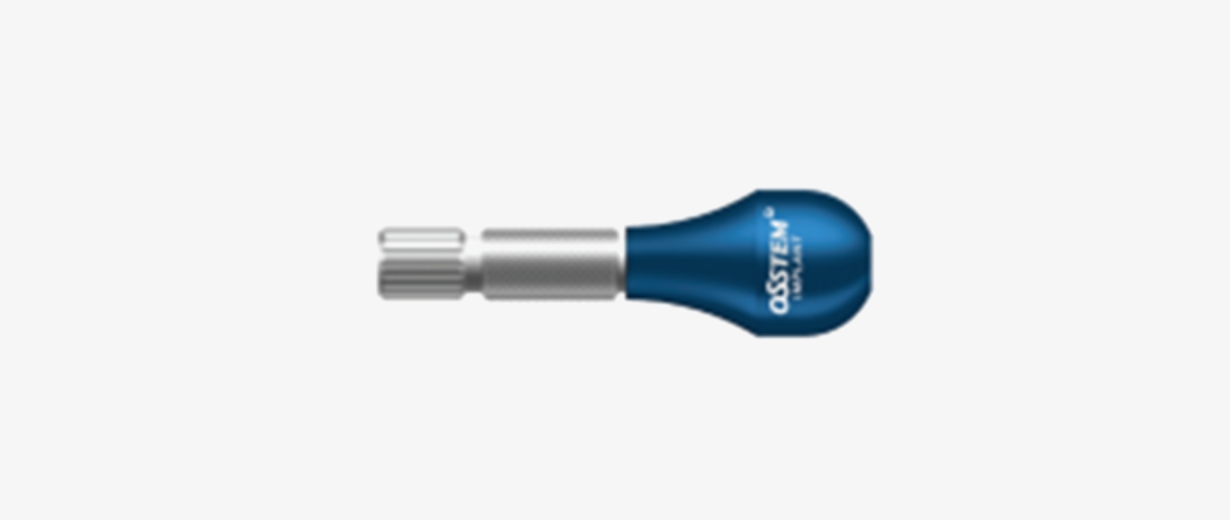

Universal Handle
  • Used in combination with a bone screw driver tip (handle)
Bone Screw Driver (Engine)
  • Used in connection with an engine
  • Use after fully tightening to a bone screw vertically
Ø1.3 Drill
  • Used when using a Ø2.0 bone screw • Recommended speed: 800rpm
