OssBuilder

Excellent absorbent membrane used for osteogenesis with excellent shielding function

홈으로 가기
Key Features
  • 3D design with no need for additional cutting or bending
  • Resolves the problem of exposure during bone healing
  • Minimizes soft tissue incision upon removal
Features

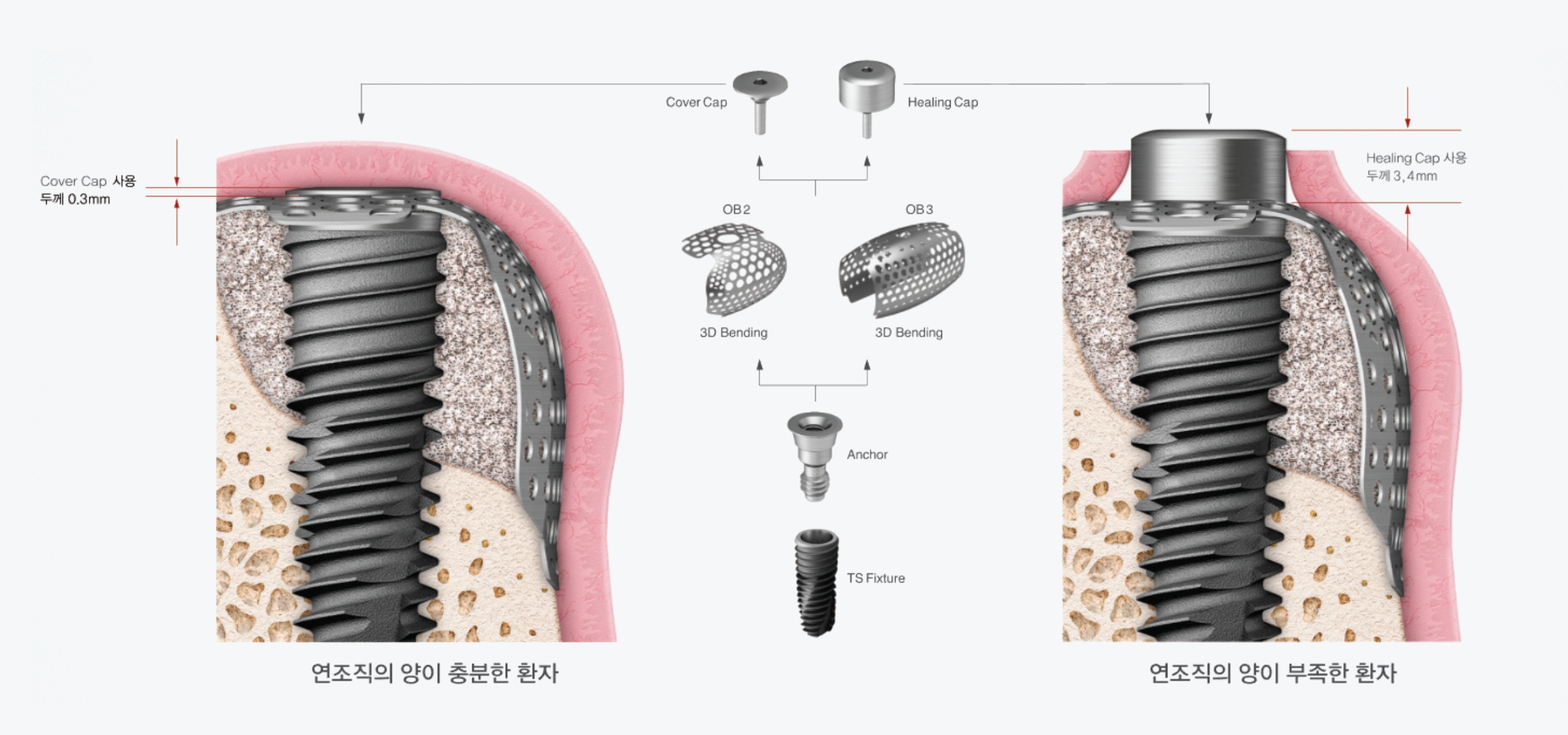

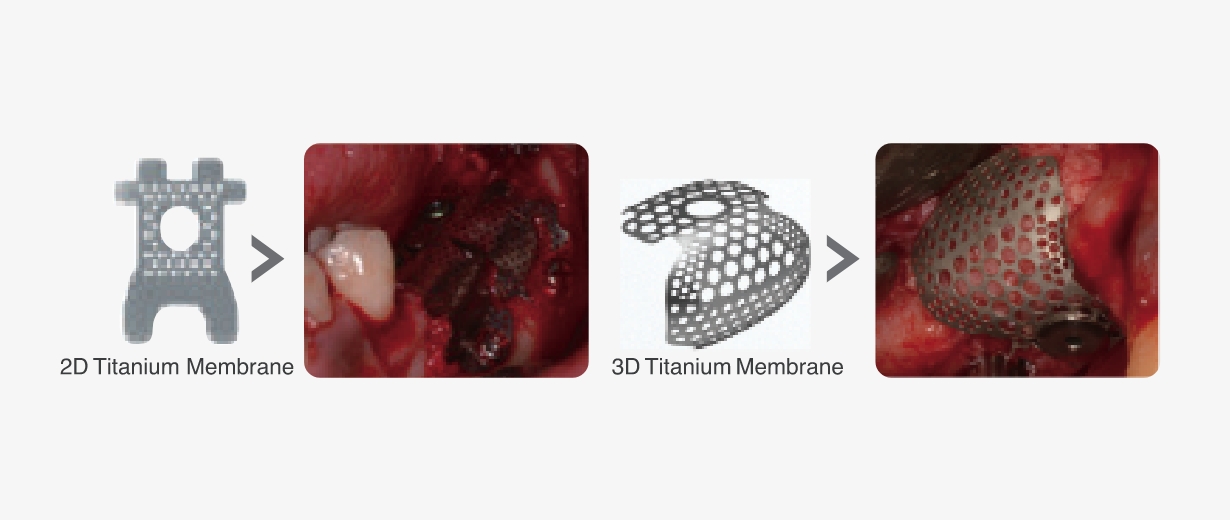

  • 3D Pre-formed design increases the convenience of the procedure
  • Lineup compatible to various clinical cases

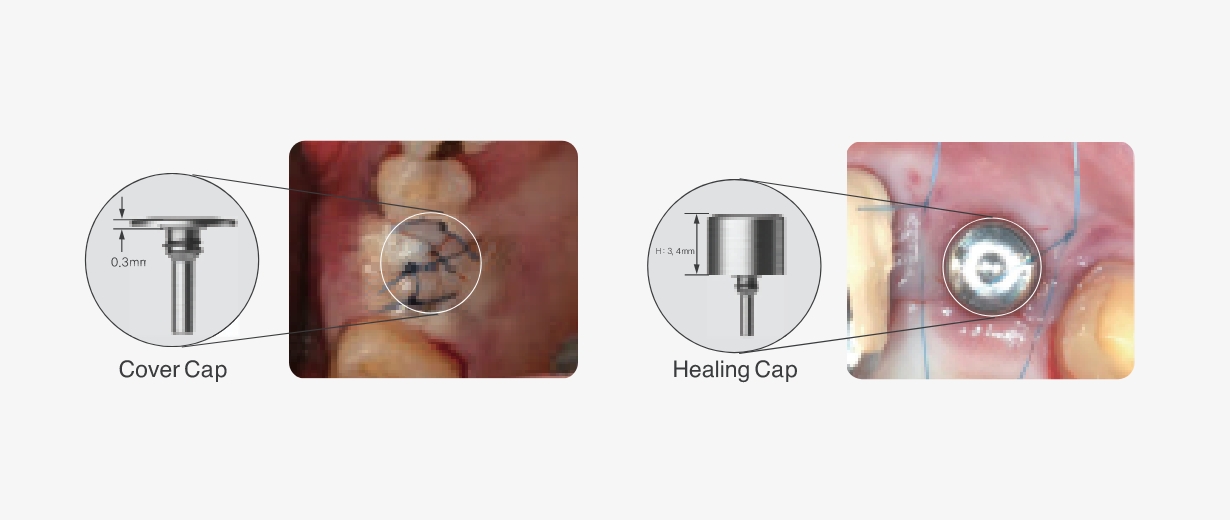

  • Cover Cap H: 0.3mm to minimize the possibility of exposure after suture
  • Healing Cap for Non-Submerged Treatment for patients with insufficient soft tissue

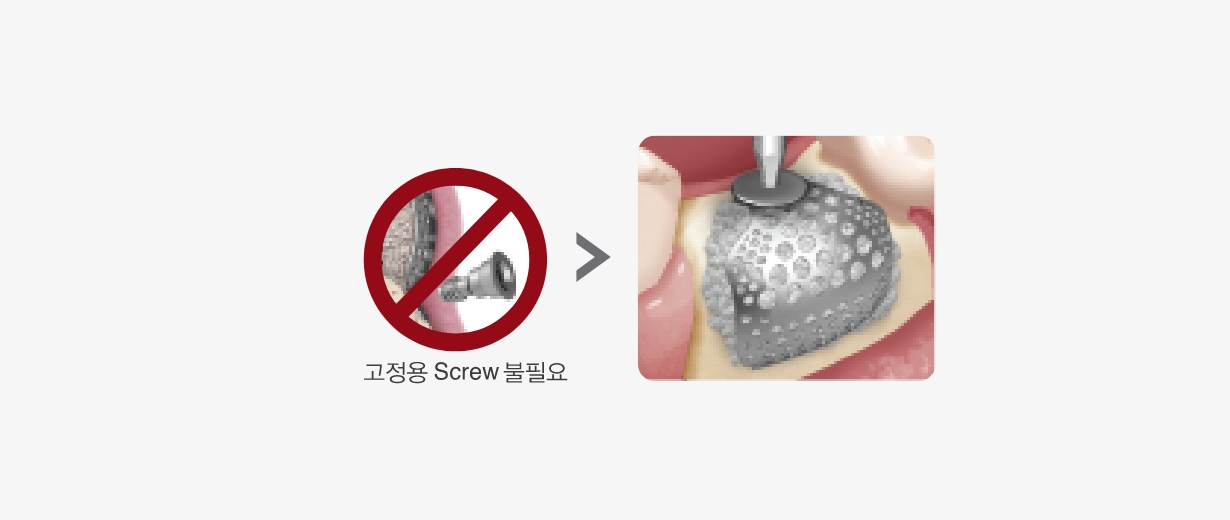

  • Can maintain shape without a screw for fixing downward thanks to round design and excellent rigidity
  • Secondary surgery possible with minimal flap opening

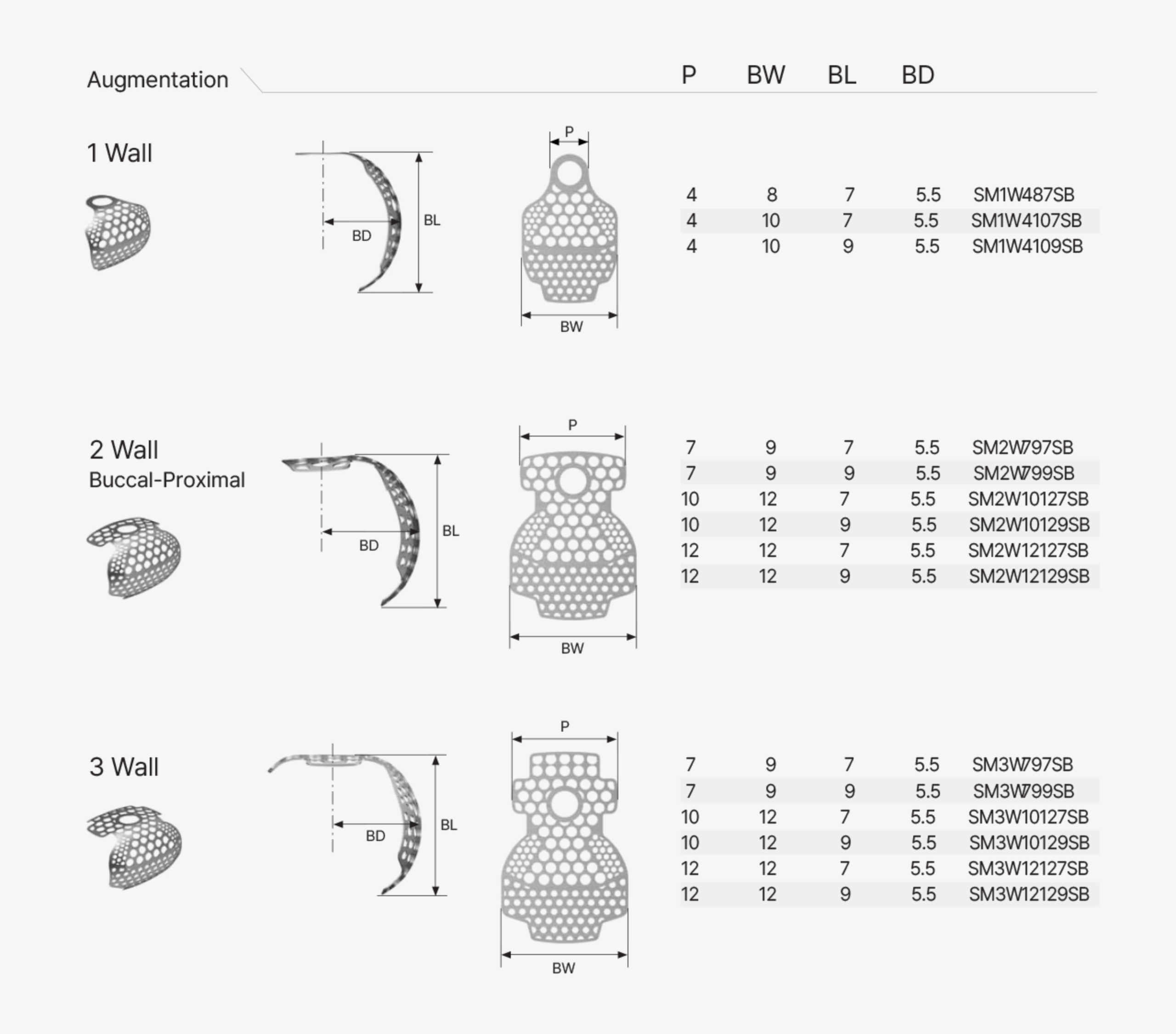

Specifications

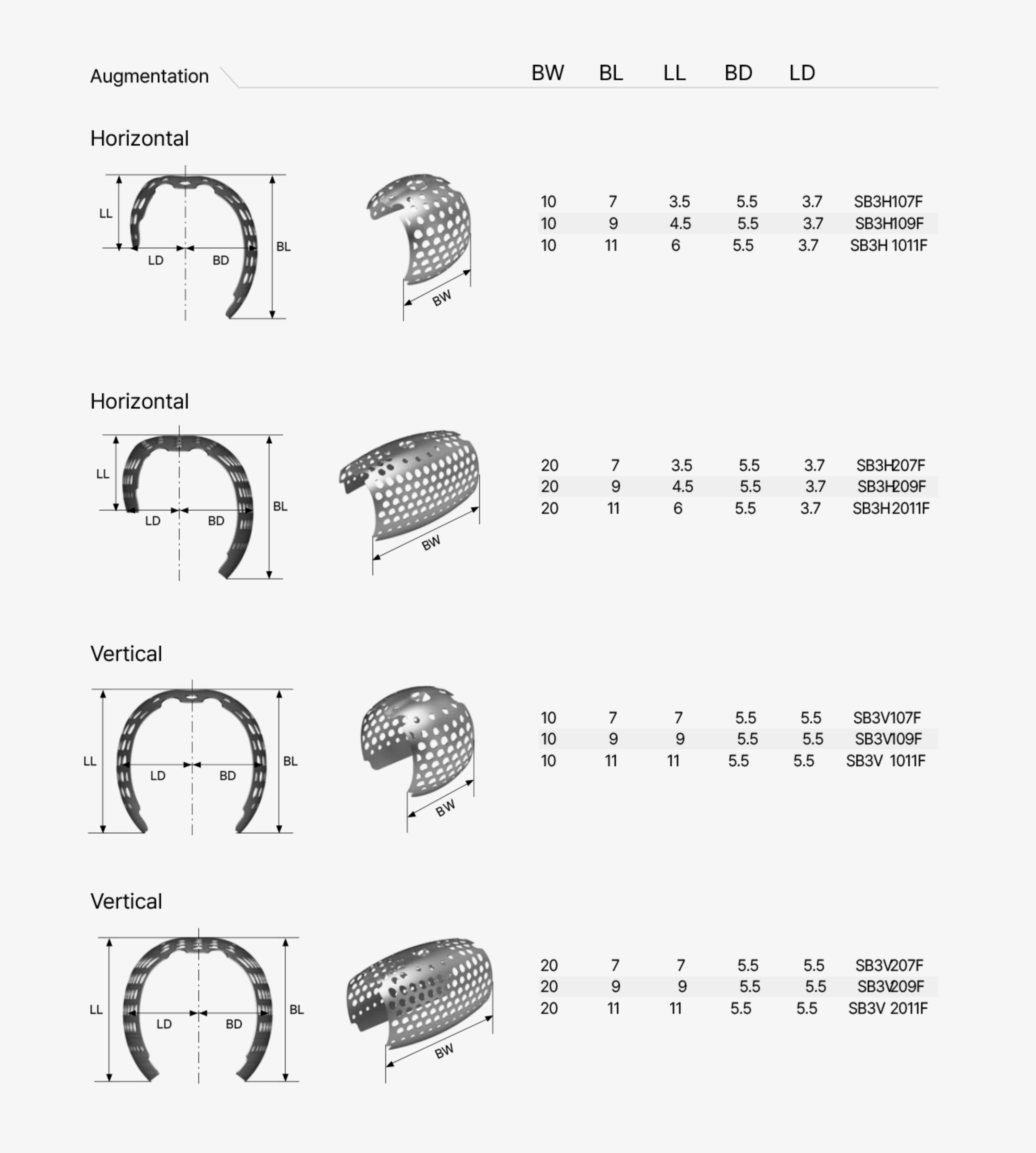

OB2 (Lateral Builder)
  • When a small amount of vertical/horizontal bone defects occur in socket extraction, fenestration, or dehiscence defects, a titanium shielding film that reconstructs the initial alveolar bone state
OB3 (Jaw builder)
  • Titanium shielding membrane capable of ridge augmentation up to 5~10mm vertically/horizontally, used in cases with severe alveolar bone recession

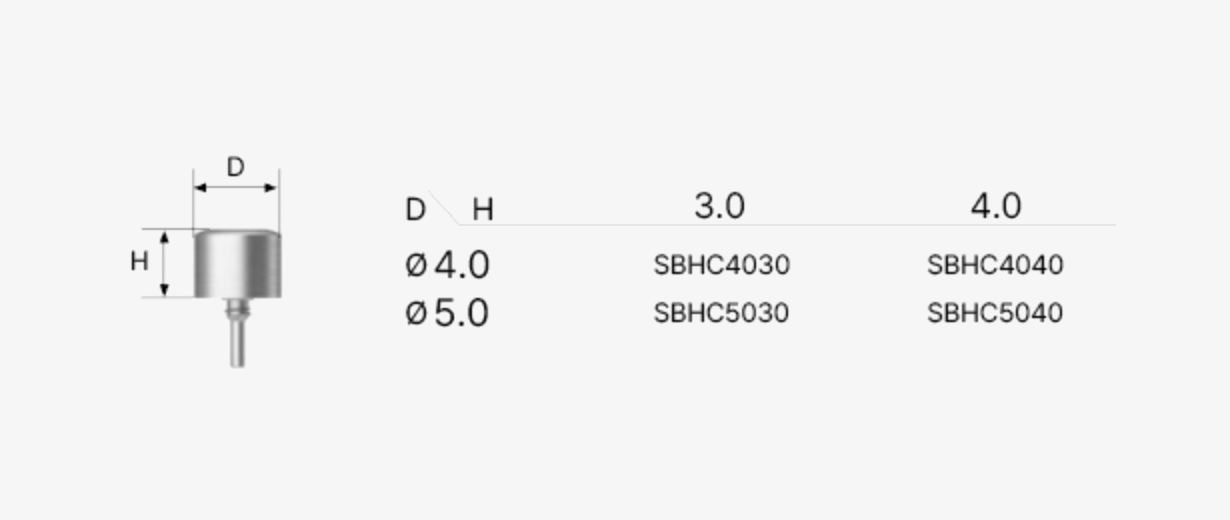

  • Healing Cap (TS)
    • Non-submerged procedures
    • OB2, OB3 compatible
    • Connects to a 0.9 hex hand driver
    • Recommended tightening torque: 5~8Ncm

    Disposable item, do not recycle

  • Cover Cap (TS)
    • submerged procedures
    • OB2, OB3 compatible
    • Connects to a 0.9 hex hand driver
    • Recommended tightening torque: 5~8Ncm

    Disposable item, do not recycle

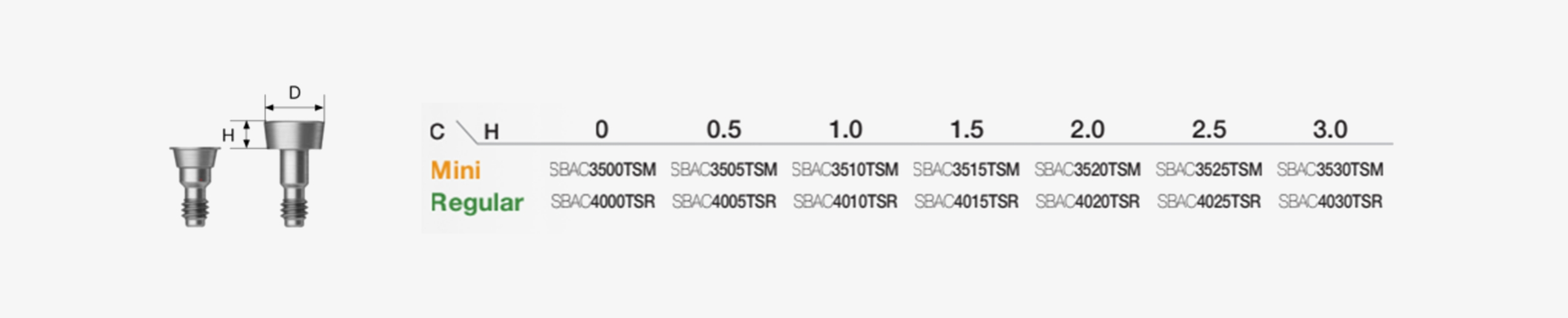

OB Anchor(TS)
  • For TS implant only (shoulder contact)
  • OB2, OB3 compatible
  • Connects to a 0.9 hex hand driver
  • Recommended tightening torque: 5~8Ncm

Disposable item, do not recycle

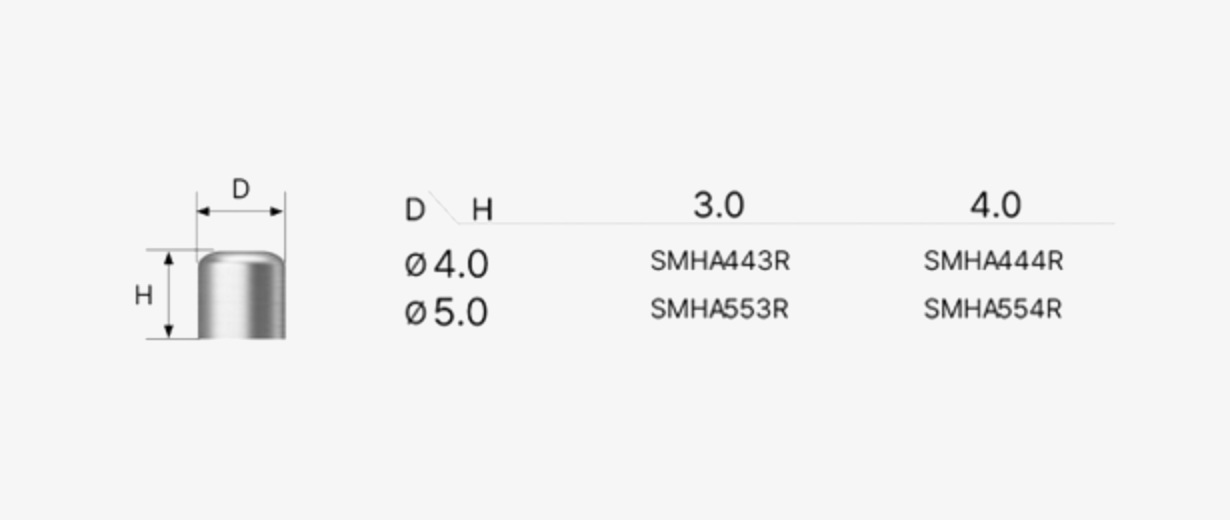

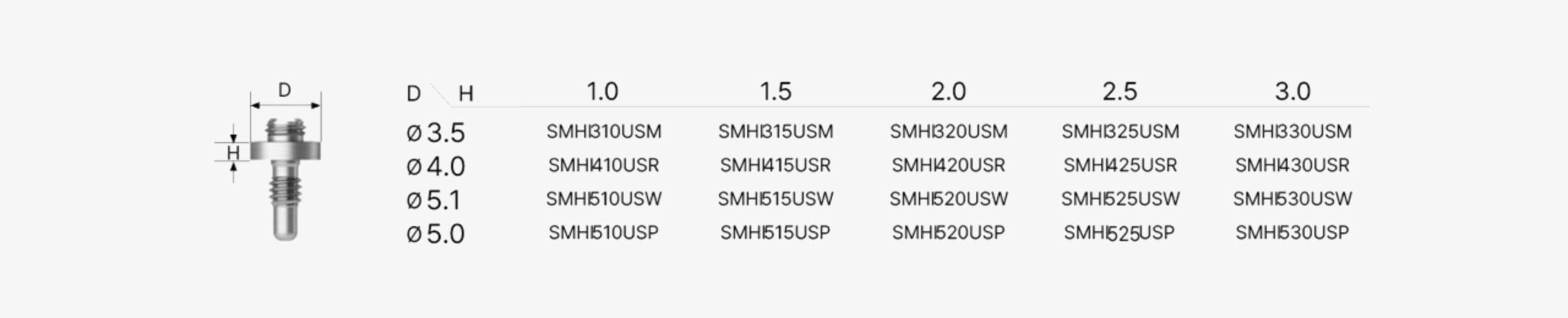

  • Healing Cap(US)
    • Non-submerged procedures
    • OB2, OB3 compatible
    • Connects to a 1.2 hex hand driver
    • Recommended tightening torque: 5~8Ncm

    Disposable item, do not recycle

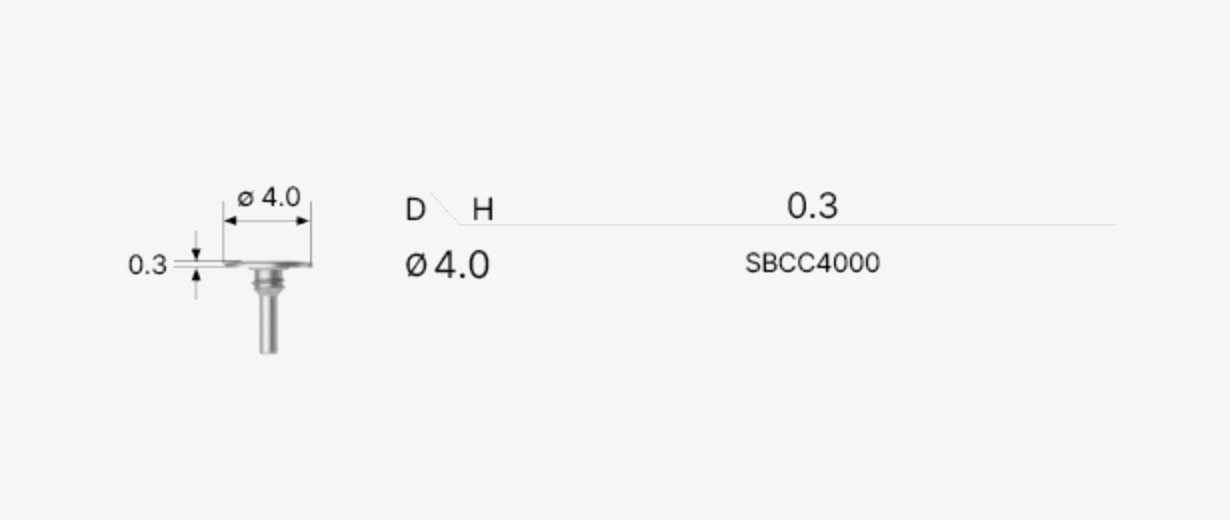

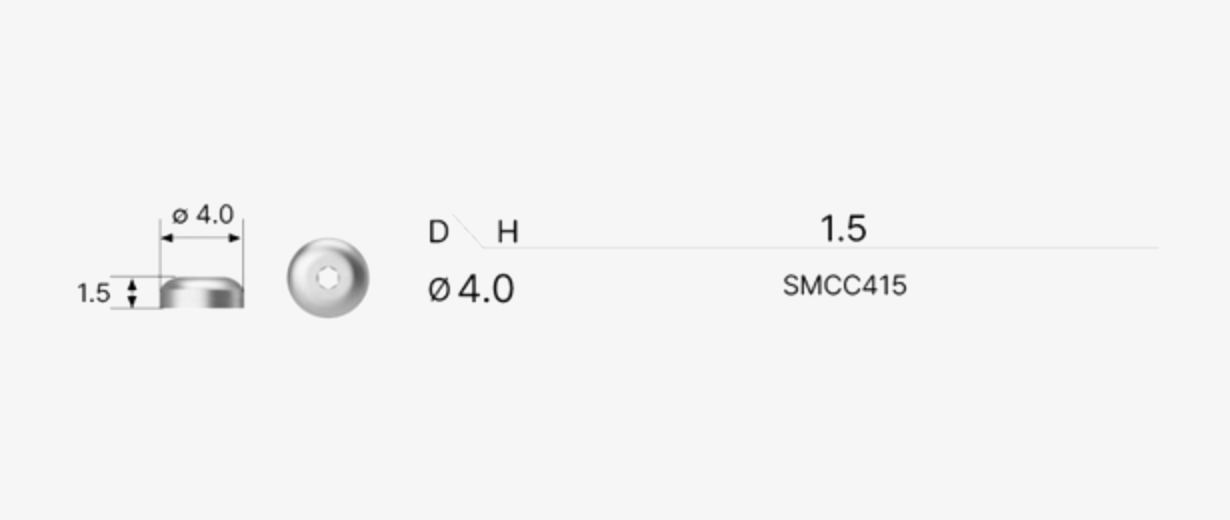

  • Cover Cap
    • Non-submerged procedures
    • OB2, OB3 compatible
    • Connects to a 0.9 hex hand driver or cover cap driver
    • Recommended tightening torque: 5~8Ncm

    Disposable item, do not recycle

OB Anchor(US)
  • For US implant only
  • OB2, OB3 compatible
  • Connects to a 1.2 hex hand driver
  • Recommended tightening torque: 12~15Ncm

Disposable item, do not recycle

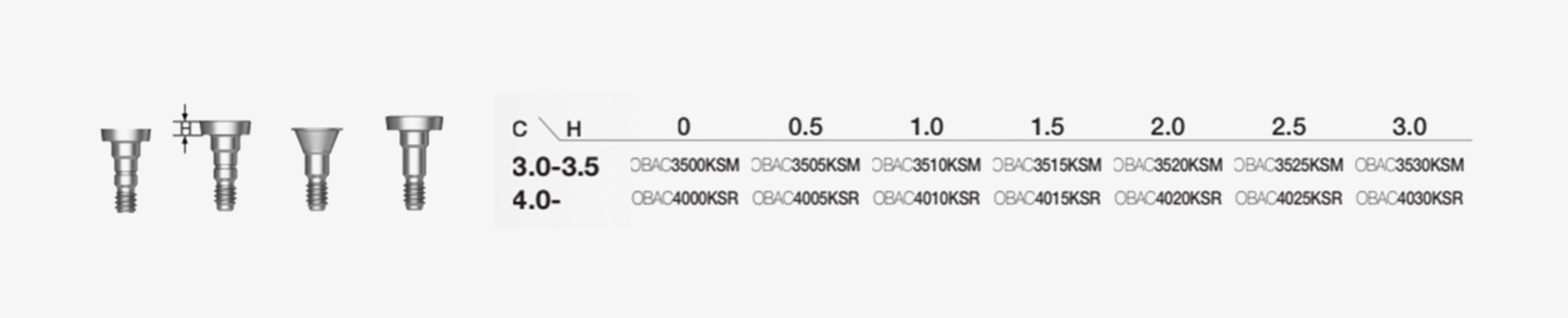

OB Anchor(KS)
  • For KS implant only (Shoulder contact)
  • OB2, OB3 compatible
  • Connects to a 0.9 hex hand driver
  • Recommended tightening torque: 12~15Ncm
  • C=Connection

Disposable item, do not recycle

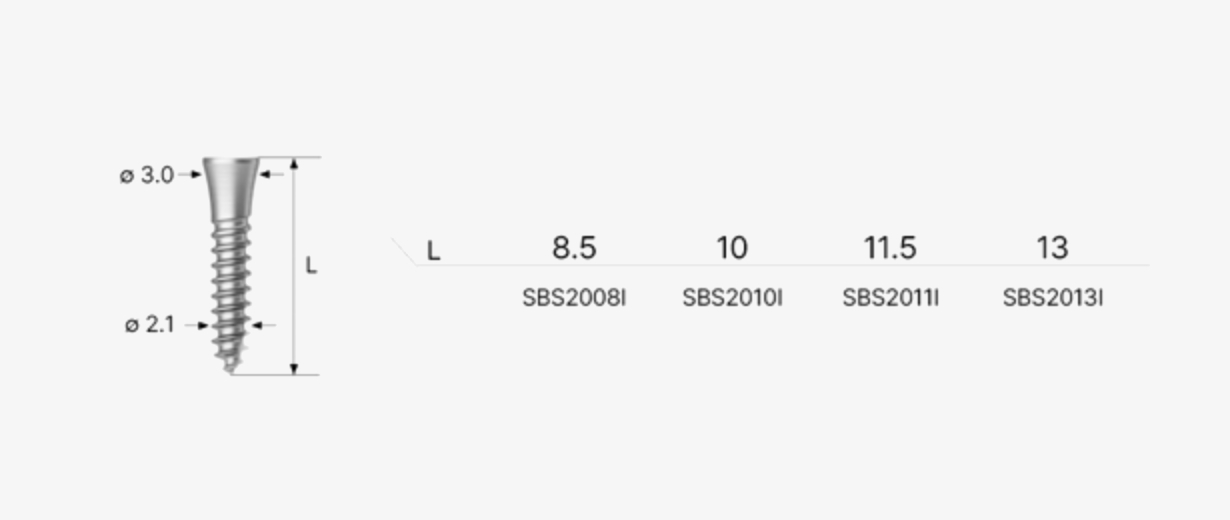

  • Tenting Screw
    • Internal Type
    • Used as an implant substitute for insufficient bone mass or narrow bone width
    • OB2, OB3 compatible
    • Recommended placement depth: 3~5mm for hard/normal bone, 5mm or more for soft bone
    • Place slowly with a 0.9 hex torque driver
    • Cover cap(TS), healing cap(TS) compatible

    Disposable item, do not recycle

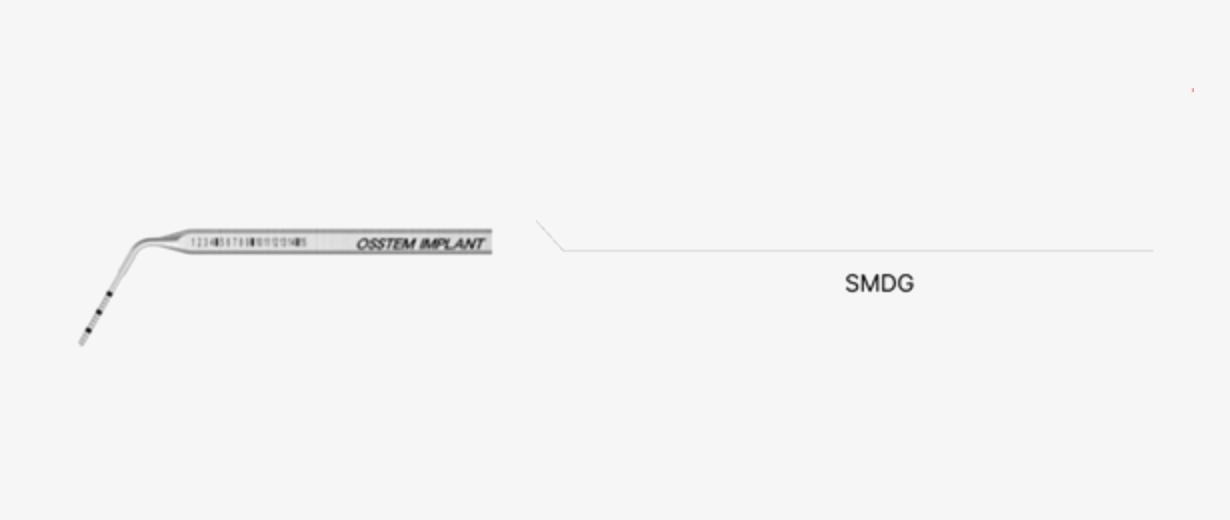

  • Defect Gauge
    • Measures vertical/horizontal defect
    • Marking lines in 1mm increments (4-5, 9-10, 14-15 have thicker lines)

    Selecting the OssBuilder specification by measuring the exact amount of defects in the bone defect with a defect gauge
    eliminates the need for trimming and bending (enables stable adaptation)

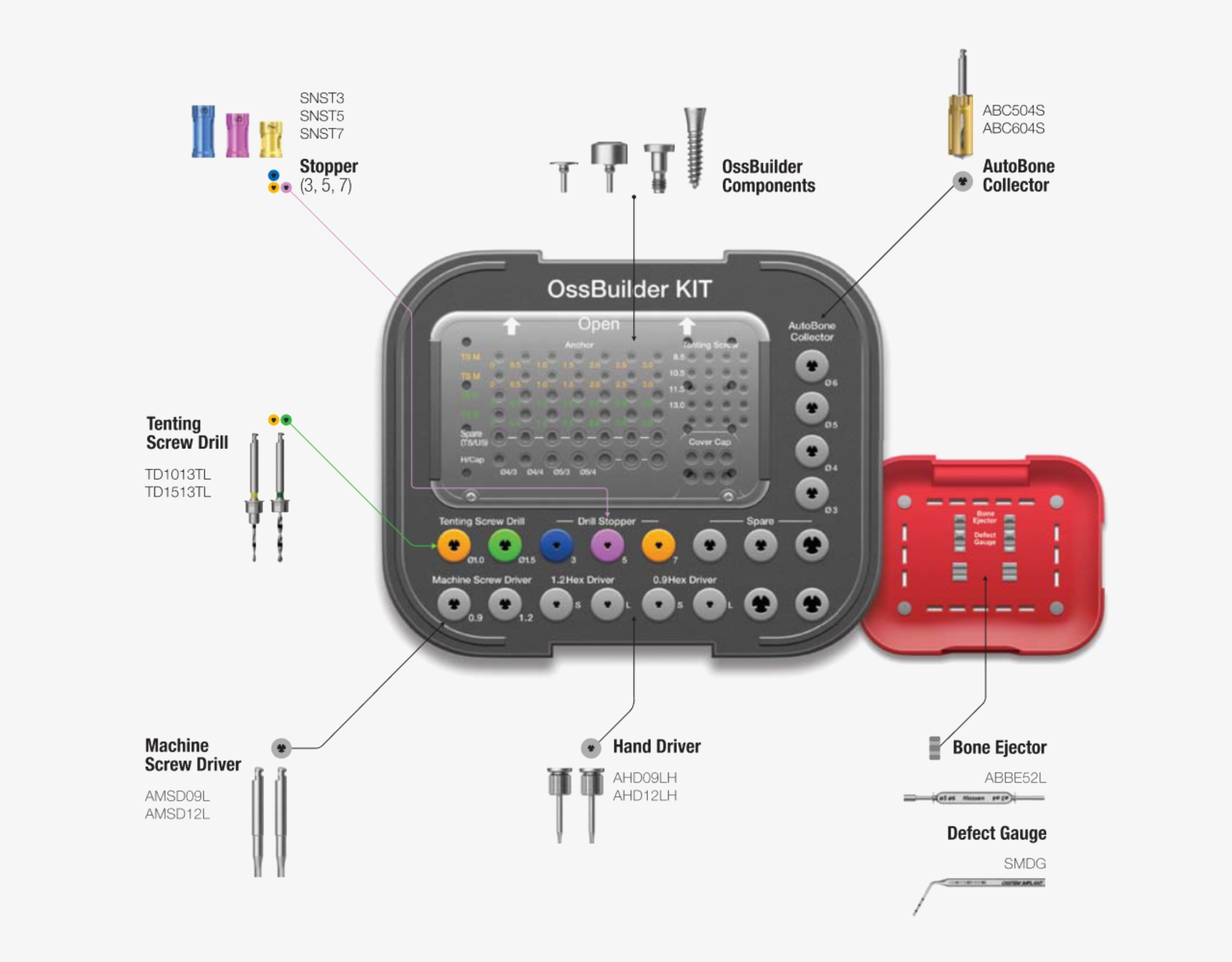

OssBuilder KIT
  • KITN1.2 hex hand driver with all the necessary surgical instruments for GBR treatment
  • Enables convenient GBR treatment using OssBuilder OB2, OB3 and OB anchor, cover cap, and healing cap
  • Cn adapt to a wide range of vertical/horizontal bone loss even in a narrow bone width by using a tenting screw
  • AutoBone collector enables immediate collection of autogeneic bone
OssBuilder KIT - Surgical instruments

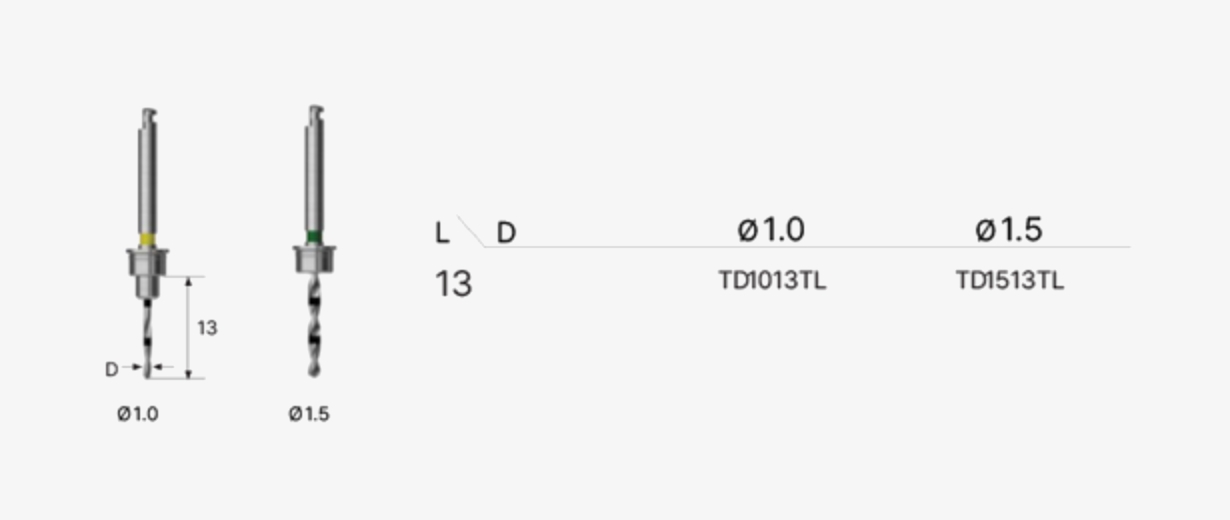

  • Tenting Screw Drill
    • Used for drilling before installing the tenting screw
    • Hard bone : Ø1.5 / normal, soft bone : Ø1.0 drill
    • Laser marking: Lines marked at 1, 2, 3, 4, 5, 6, 7, 8mm points
    • Recommended speed: 1200~1500rpm
    • Attached stopper length: 3~7mm
  • Stopper
    • Fasten to a tenting screw drill

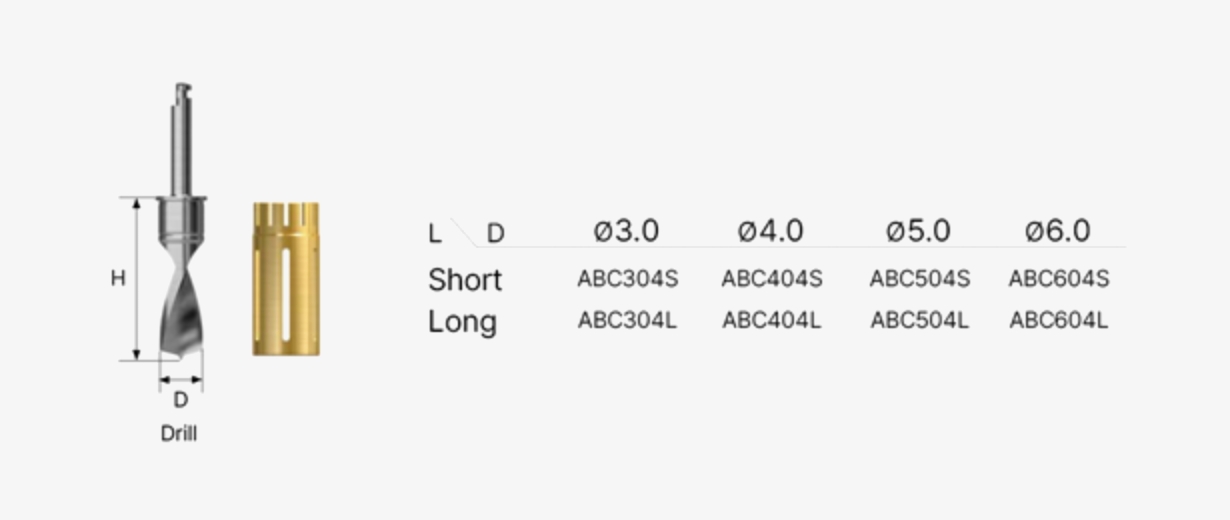

  • AutoBone Collector®
    • ∅3.0~6.0 specifications feature a drill + stopper set
    • Recommended speed: 300~600rpm
    • No. of drill and stopper use: 50 times

    Before initial drilling, attach a stopper to the first locking part of the drill and drill into the second locking part by 4mm to collect autogeneic bone (After collecting autogeneic bone, stop the drill and remove as is)

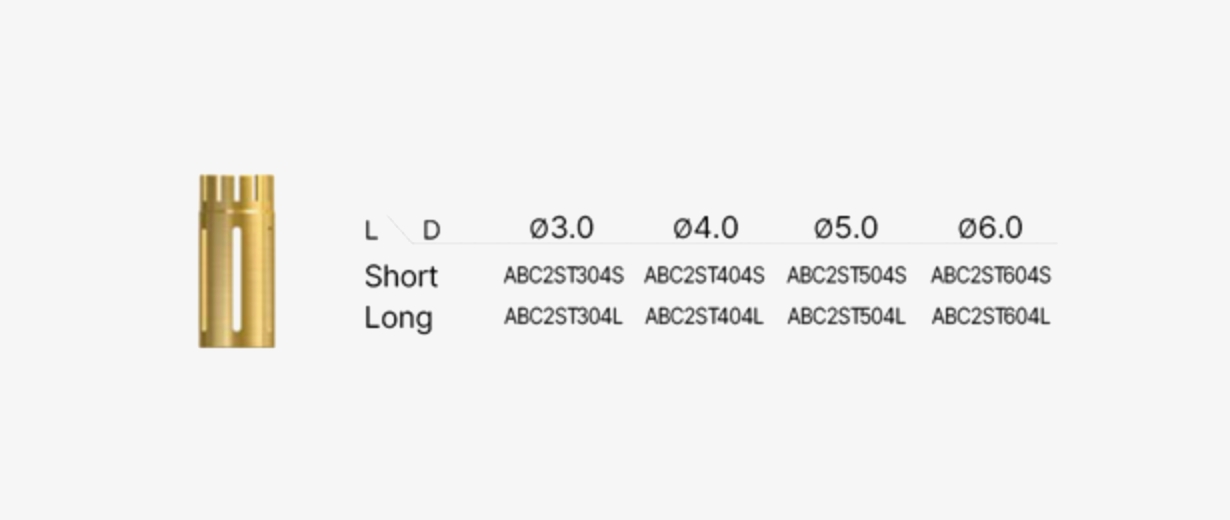

  • Stopper
    • Stops drilling at a depth of 4mm to collect cortical bone
    • Stores autogenous bone collected during the drilling process

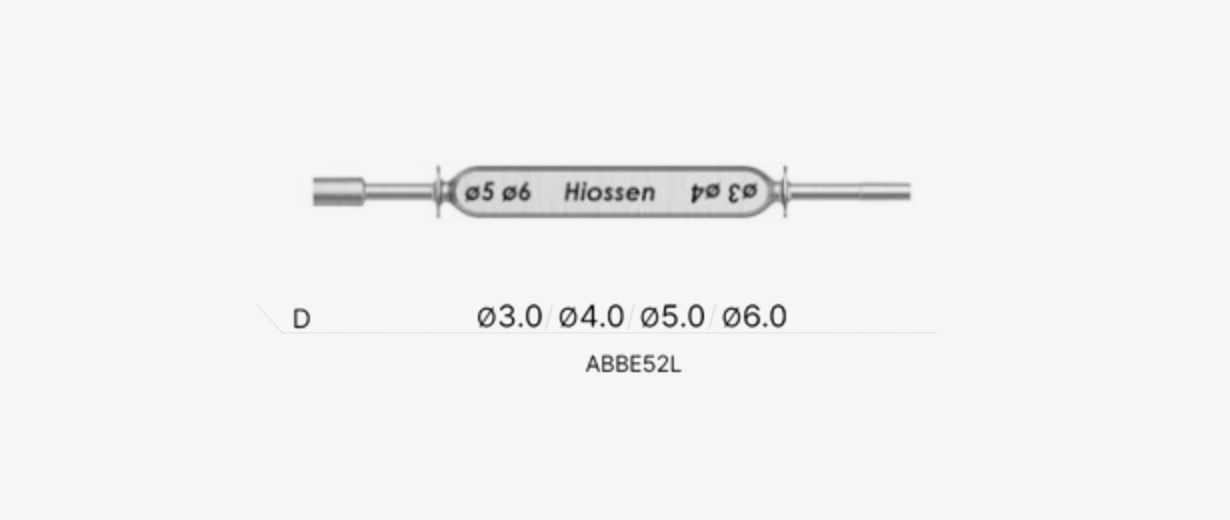

  • Bone Ejector
    • Surgical instrument for discharging the autogenous bone collected inside the stopper
